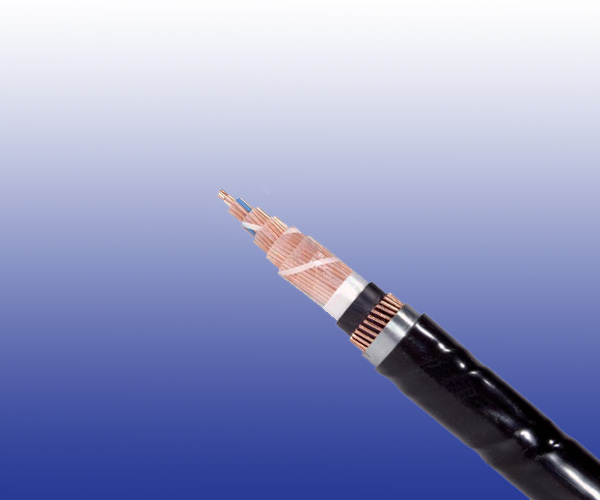

AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95)
Application
The cables are designed for transmission of service tensions up to 600 VDC /420 Veff AC100Hz in railway signalling networks, and are suitable for installation in ducts or laying directly into the ground.
Standards
● Dlk 1.013.107y
● Dlk 1.013.107y
● Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
● Dlk 1.013.110y
Construction
Conductors
Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
Insulation
Solid polyethylene.
Stranding
Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
Core Wrapping
Plastic tape(s) with overlapping.
Inner Sheath
Low density polyethylene.
Electrostatic Shield
One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).
Electromagnetic Shield
Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction
factor).
Outer Sheath
Low density polyethylene.
Type Codes
AJ- outdoor cable with protection against inductive infl uences
2Y- solid PE conductor insulation
2Y- inner PE sheath
D- copper wire concentric screen
B- steel tape armor
2Y- outer PE sheath
S- signal cable
LG- layer stranding
H (n)- operating capacity
Electrical Characteristics at 20℃
| Nominal Conductor Diameter | mm |
0.9 |
1.4 |
1.8 |
| Maximum Conductor Resistance | Ω/km |
28.9 |
11.9 |
7.2 |
| Minimum Insulation Resistance @500 V DC (1min) | MΩ.km |
10000 |
10000 |
10000 |
| Maximum Mutual Capacitance @800Hz (AC) | nF/km |
15 |
145/95* |
145/95* |
| Dielectric Strength, conductor to conductor (DC voltage 1min) | V |
3535 |
3535 |
3535 |
| Surveillance Conductors | ||||
| Loop resistance, maximum | Ω/km |
190 |
190 |
190 |
| Insulation resistance | ||||
| - dry cable core, minimum | MΩ.km |
1000 |
1000 |
1000 |
| - wet cable core, maximum | KΩ.km |
30 |
30 |
30 |
| Nominal Reduction Factor @ 100 V/km, 16 2/3 Hz | ||||
| rk 401 series | 0.15 |
0.15 |
0.15 |
|
| rk 501 series | 0.35 |
0.35 |
0.35 |
|
| rk 601 series | 0.55 |
0.55 |
0.55 |
|
| Operating Voltage AC/DC | V |
420/600 |
420/600 |
420/600 |
| Test Voltage@50 Hz 1 min | ||||
| Core to Core | Veff |
2500 |
2500 |
2500 |
| Core to Screen | Veff |
2500 |
2500 |
2500 |
*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)
Dimensions And Weight
AJ-2Y2YDB2Y n×1×0.9 S(H115)
Cable Code |
Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight Inner Outer kg/km |
|
Inner |
Outer |
||||
0.9mm Conductor, 1.55mm Insulated Wire rk 601 Series |
|||||
| RS107y-2Y2YDB2Y-10C0.9-S(H115)-R6 | 10 |
1.3 |
1.2 |
19.0 |
520 |
| RS107y-2Y2YDB2Y-20C0.9-S(H115)-R6 | 20 |
1.3 |
1.2 |
20.0 |
650 |
| RS107y-2Y2YDB2Y-30C0.9-S(H115)-R6 | 30 |
1.3 |
1.2 |
22.0 |
780 |
| RS107y-2Y2YDB2Y-50C0.9-S(H115)-R6 | 50 |
1.3 |
1.2 |
25.0 |
1010 |
| RS107y-2Y2YDB2Y-80C0.9-S(H115)-R6 | 80 |
1.3 |
1.2 |
29.0 |
1330 |
| RS107y-2Y2YDB2Y-120C0.9-S(H115)-R6 | 120 |
1.3 |
1.3 |
32.0 |
1740 |
| RS107y-2Y2YDB2Y-160C0.9-S(H115)-R6 | 160 |
1.3 |
1.3 |
35.0 |
2310 |
| RS107y-2Y2YDB2Y-200C0.9-S(H115)-R6 | 200 |
1.3 |
1.3 |
38.0 |
2520 |
0.9mm Conductor, 1.55mm Insulated Wire rk 501 Series |
|||||
| RS107y-2Y2YDB2Y-10C0.9-S(H115)-R5 | 10 |
1.3 |
1.2 |
19.0 |
600 |
| RS107y-2Y2YDB2Y-20C0.9-S(H115)-R5 | 20 |
1.3 |
1.2 |
20.0 |
740 |
| RS107y-2Y2YDB2Y-30C0.9-S(H115)-R5 | 30 |
1.3 |
1.2 |
22.0 |
890 |
| RS107y-2Y2YDB2Y-50C0.9-S(H115)-R5 | 50 |
1.3 |
1.3 |
25.0 |
1150 |
| RS107y-2Y2YDB2Y-80C0.9-S(H115)-R5 | 80 |
1.3 |
1.3 |
29.0 |
1480 |
| RS107y-2Y2YDB2Y-120C0.9-S(H115)-R5 | 120 |
1.5 |
1.3 |
32.0 |
1910 |
| RS107y-2Y2YDB2Y-160C0.9-S(H115)-R5 | 160 |
1.5 |
1.3 |
35.0 |
2530 |
| RS107y-2Y2YDB2Y-200C0.9-S(H115)-R5 | 200 |
1.5 |
1.5 |
38.0 |
2730 |
AJ-2Y2YDB2Y n×1×1.4/1.8 S(H145)
Cable Code |
Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight Inner Outer kg/km |
|
Inner |
Outer |
||||
1.4mm Conductor, 2.2mm Insulated Wire rk 601 Series |
|||||
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R6 |
10 |
1.3 |
1.2 |
21 |
670 |
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R6 |
20 |
1.3 |
1.2 |
23.5 |
940 |
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R6 |
30 |
1.3 |
1.2 |
27 |
1180 |
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R6 |
50 |
1.3 |
1.2 |
31 |
1650 |
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R6 |
80 |
1.3 |
1.2 |
35 |
2270 |
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R6 |
120 |
1.3 |
1.3 |
41 |
3110 |
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R6 |
160 |
1.3 |
1.3 |
46 |
3900 |
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R6 |
200 |
1.3 |
1.3 |
49 |
4670 |
1.4mm Conductor, 2.2mm Insulated Wire rk 501 Series |
|||||
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R5 |
10 |
1.3 |
1.2 |
21 |
780 |
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R5 |
20 |
1.3 |
1.2 |
23.5 |
1070 |
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R5 |
30 |
1.3 |
1.2 |
26 |
1320 |
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R5 |
50 |
1.3 |
1.3 |
31 |
1810 |
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R5 |
80 |
1.3 |
1.3 |
35 |
2460 |
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R5 |
120 |
1.5 |
1.3 |
42 |
3380 |
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R5 |
160 |
1.5 |
1.3 |
46 |
4190 |
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R5 |
200 |
1.5 |
1.5 |
49 |
5000 |
1.4mm Conductor, 2.2mm Insulated Wire rk 401 Series |
|||||
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R4 |
10 |
1.3 |
1.2 |
23 |
960 |
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R4 |
20 |
1.3 |
1.2 |
25.6 |
1260 |
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R4 |
30 |
1.3 |
1.3 |
28 |
1940 |
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R4 |
50 |
1.3 |
1.3 |
33 |
2450 |
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R4 |
80 |
1.5 |
1.3 |
38 |
3280 |
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R4 |
120 |
1.5 |
1.5 |
44 |
4290 |
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R4 |
160 |
1.5 |
1.5 |
48 |
5200 |
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R4 |
200 |
1.5 |
1.5 |
52 |
6060 |
1.8mm Conductor, 2.7mm Insulated Wire rk 601 Series |
|||||
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R6 |
10 |
1.3 |
1.2 |
23 |
850 |
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R6 |
20 |
1.3 |
1.2 |
27 |
1260 |
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R6 |
30 |
1.3 |
1.3 |
30 |
1620 |
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R6 |
50 |
1.3 |
1.3 |
36 |
2080 |
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R6 |
80 |
1.5 |
1.3 |
41 |
3310 |
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R6 |
120 |
1.5 |
1.5 |
48 |
4570 |
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R6 |
160 |
1.5 |
1.5 |
54 |
5950 |
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R6 |
200 |
1.5 |
1.5 |
58 |
6970 |
1.8mm Conductor, 2.7mm Insulated Wire rk 501 Series |
|||||
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R5 |
10 |
1.3 |
1.2 |
23 |
970 |
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R5 |
20 |
1.3 |
1.2 |
27 |
1410 |
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R5 |
30 |
1.3 |
1.3 |
30 |
1780 |
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R5 |
50 |
1.3 |
1.3 |
36 |
2520 |
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R5 |
80 |
1.5 |
1.3 |
42 |
3570 |
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R5 |
120 |
1.5 |
1.5 |
49 |
5950 |
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R5 |
160 |
1.5 |
1.5 |
55 |
6170 |
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R5 |
200 |
1.5 |
1.5 |
59 |
7380 |
1.8mm Conductor, 2.7mm Insulated Wire rk 401 Series |
|||||
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R4 |
10 |
1.3 |
1.2 |
25 |
1160 |
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R4 |
20 |
1.3 |
1.2 |
29 |
1700 |
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R4 |
30 |
1.3 |
1.3 |
32 |
2400 |
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R4 |
50 |
1.3 |
1.3 |
38 |
3350 |
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R4 |
80 |
1.5 |
1.3 |
44 |
3310 |
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R4 |
120 |
1.5 |
1.5 |
51 |
4900 |
| RS107y-2Y2YDB2Y-160C1.8-S(H145)-R4 | 160 |
1.5 |
1.5 |
57 |
7340 |
| RS107y-2Y2YDB2Y-200C1.8-S(H145)-R4 | 200 |
1.5 |
1.5 |
61 |
8650 |
AJ-2Y2YDB2Y n×1×1.4/1.8 S(H95)
Cable Code |
Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
Inner |
Outer |
||||
1.4mm Conductor, 2.7mm Insulated Wire rk 501 Series |
|||||
RS108y-2Y2YDB2Y-10C1.4-S(H95)-R5 |
10 |
1.3 |
1.2 |
22.0 |
900 |
RS108y-2Y2YDB2Y-14C1.4-S(H95)-R5 |
14 |
1.3 |
1.2 |
24.0 |
1010 |
RS108y-2Y2YDB2Y-20C1.4-S(H95)-R5 |
20 |
1.3 |
1.2 |
27.0 |
1220 |
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R5 |
30 |
1.3 |
1.2 |
30.0 |
1520 |
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R5 |
50 |
1.3 |
1.3 |
35.0 |
2090 |
1.4mm Conductor, 2.7mm Insulated Wire rk 401 Series |
|||||
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R4 |
30 |
1.3 |
1.2 |
32.0 |
2150 |
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R4 |
50 |
1.3 |
1.3 |
38.0 |
2900 |
1.8mm Conductor, 3.4mm Insulated Wire rk 501 Series |
|||||
RS108y-2Y2YDB2Y-10C1.8-S(H95)-R5 |
10 |
1.3 |
1.2 |
25.0 |
1130 |
RS108y-2Y2YDB2Y-14C1.8-S(H95)-R5 |
14 |
1.3 |
1.2 |
27.0 |
1330 |
RS108y-2Y2YDB2Y-20C1.8-S(H95)-R5 |
20 |
1.3 |
1.2 |
30.0 |
1620 |
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R5 |
30 |
1.3 |
1.3 |
34.0 |
2340 |
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R5 |
50 |
1.3 |
1.3 |
42.0 |
3020 |
1.8mm Conductor, 3.4mm Insulated Wire rk 401 Series |
|||||
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R4 |
30 |
1.3 |
1.3 |
37.0 |
2880 |
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R4 |
50 |
1.3 |
1.3 |
44.0 |
3950 |
